Product details

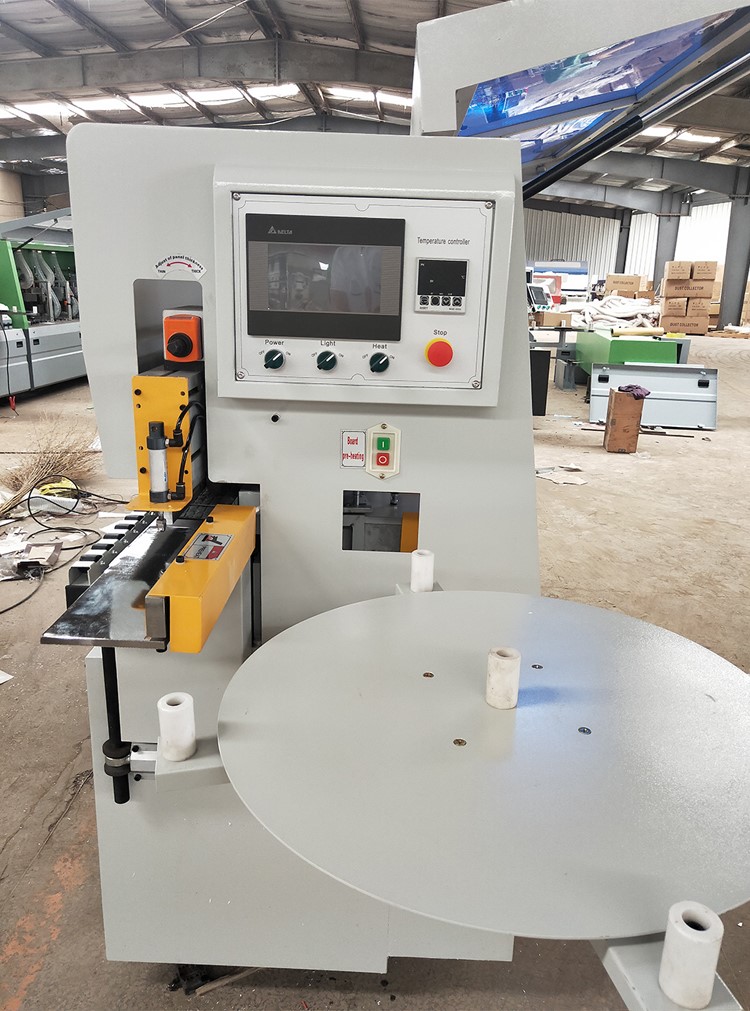

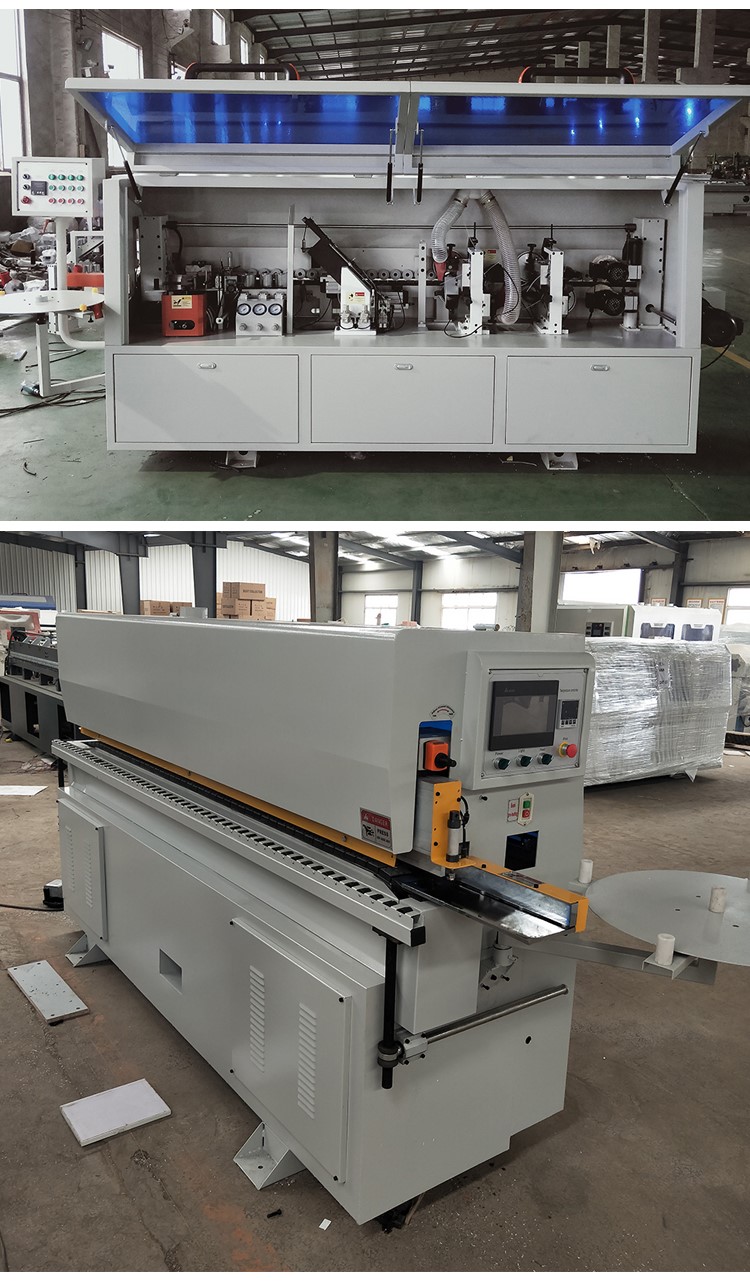

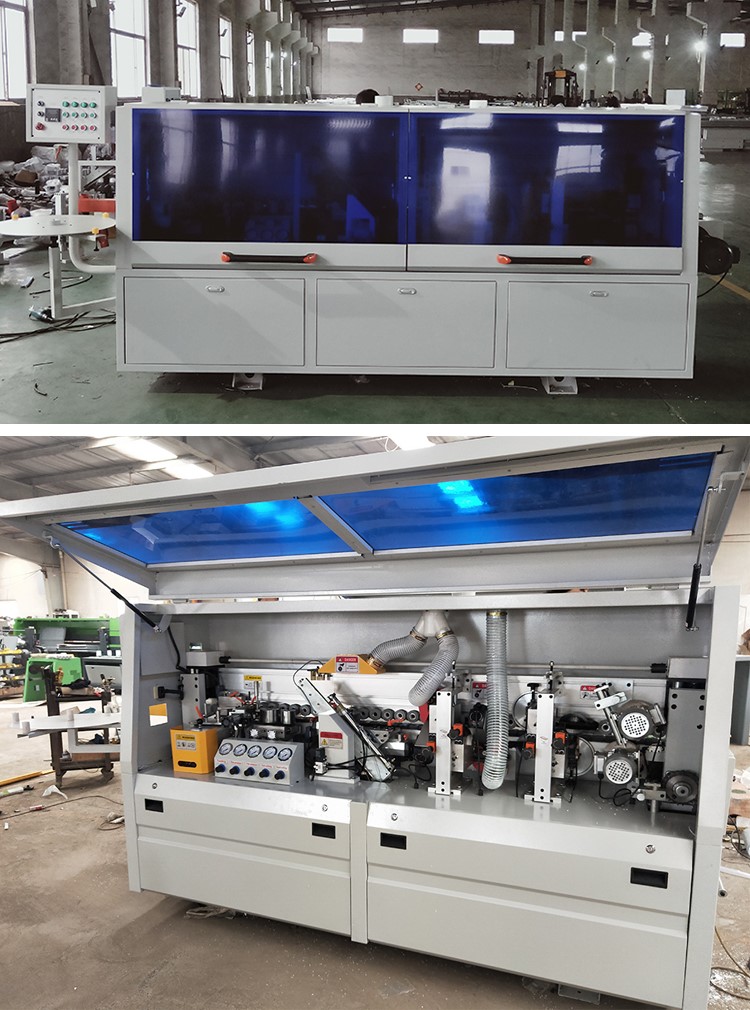

M4/50 automatic edge banding machine
Product introduction
Product Description:
Applicable products: solid wood panels, fibreboard, particleboard, MDF and other panels and other panel furniture Edge. Edge of the main PVC, polyester, melamine and wood, and so on.

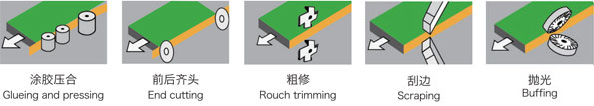

Working principle: Glue, Qi,rough repair，intensive, profiling，scraping, flat scraping polishing.
Achieve results: a high degree of automation, high efficiency, high precision and high aesthetics.
Structural advantages: laser cutting steel plate base, a welded body made of solid deformation does not increase the stability of the machine to ensure that each processing department can work fine. Processing components imported motor and high-quality electrical components.
Technical Data:
|
Total power |
6.3KW |
|
Ocerall size |
3938*830*1610mm |
|
Free speed |
15-23m/min |
|
Edge thickness |
0.4-3mm |
|
Panel thickness |
10-60mm |
|
Panel Length |
≥ 150mm |
|
Panel width |
≥40mm |
|
Working pressure |
0.6Mpa |
|
Min.panel size |
350(L)*40 (W) mm 150(L) 150 (W) mm |
|
Weight |
1000kg |

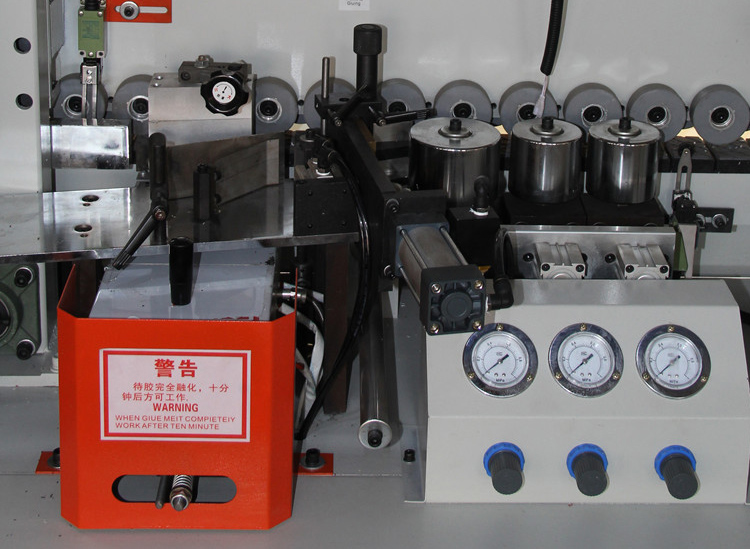

Preheating and gluing

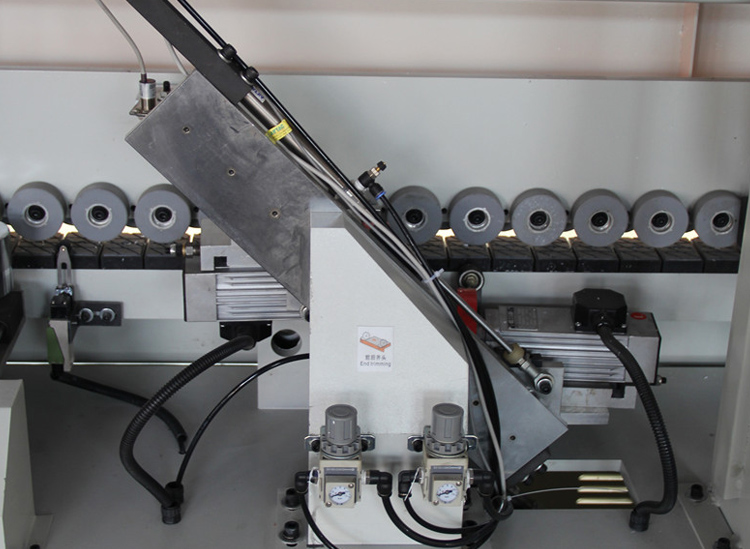

Back and forth

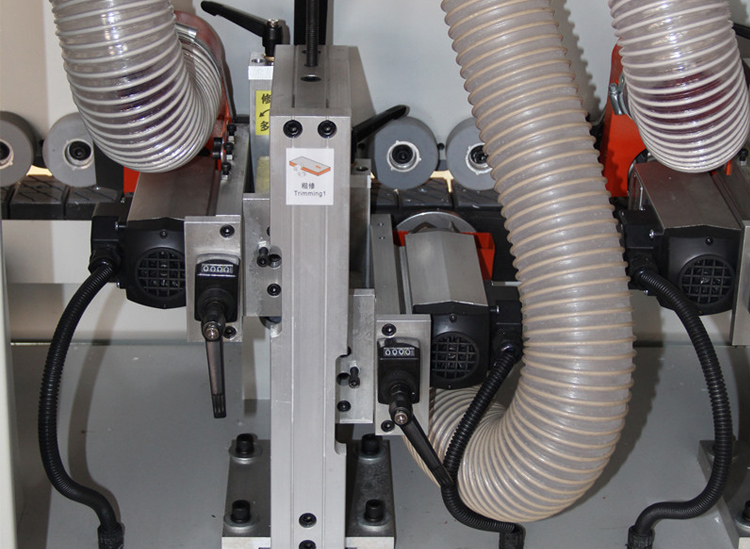

Rough trimming

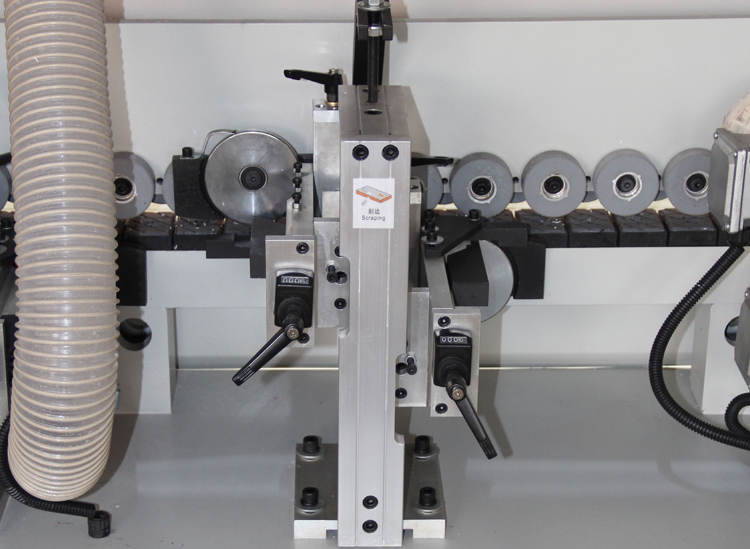

Scraping

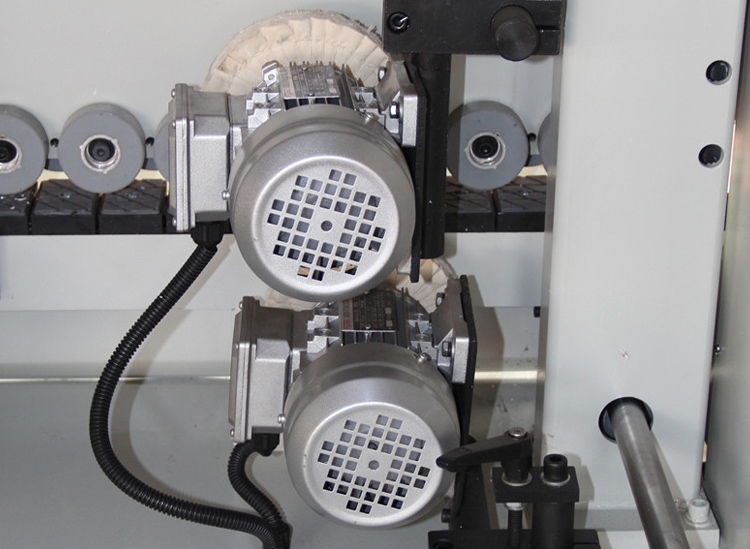

polishing
